W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401

Name: W0135989371 Truck Air Spring CONTITECH 910185P521 1R12401
Brand: VKNTECH
Price: 1.00 USD

Quality W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401 for sale

Place of Origin : Guangdong, China

Brand Name : VKNTECH

Certification : IATF16949/ISO9000

Packaging Details : CARTON/PALLET

Supply Ability : 2000000pcs/Year

MOQ : 20 Pieces

Price : $1.00 - $50.00/Pieces

Model Number : 1K9371

OE NO. : W01-358-9371

Warranty : 12 Months

Type : by sea / by air / by truck

Car Model : For bus/truck&trailer

Price condition : FOB China

Sample : Available

Material : Imported Natrul Rubber

Operation : Gas-filled

Brand : VKNTECH or customized

Service offered : OEM

Suspension system : Air Spring Suspension

Type of Goods : Air Spring/Air bags/Air Ballons

Package : Standard packing or customized

Payment term : T/T&L/C

Port : Guangzhou

Contact Now

W01-3598-9371 Gas-Filled Air Bellow 1R12-401 Rubber Air Suspension System/ Truck Spare Parts Steel Piston 910-18.5P521

OEM

CONTITECH	9 10-17.5 P 521	DAYTON	352-9371
FIRESTONE	1T15MT-8	NAVISTAR	2027911C-1
FIRESTONE 2	W01 358 9371		1686386C-1
GOODYEAR	1R12-401		1670073C-1
	1R12-244	TRIANGLE	8521

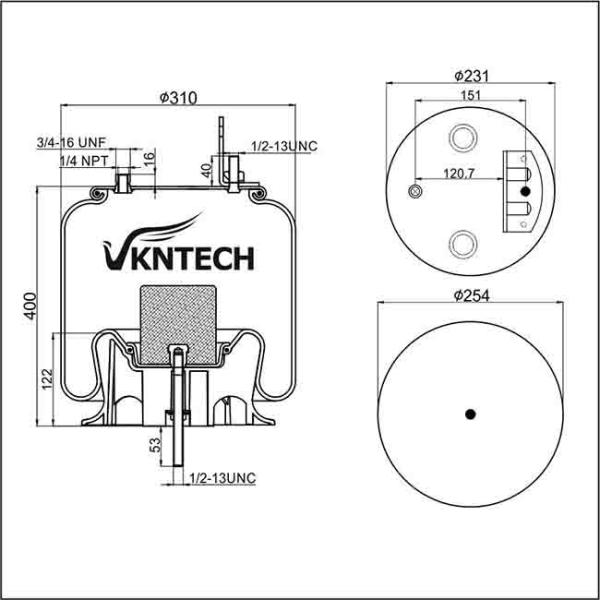

Drawings

W01-3598-9371 Truck Air Spring CONTITECH 910-18.5P521 1R12-401

Specifications

Air Spring Air Fitting Size	Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Air Spring Compressed Height	6 in.
Air Spring # of Lobes	1 Solid Sleeve
Air Spring Type	1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D.	9 and 10.12 in.
Bead Plate (Top) Mounting Bolts Dimension Center to Center	5.75 in.
Diameter	10.12 in.
Extended Height Deflated	22 in.
Finished Weight	18 lbs
Piston (Bottom) Mounting Bolt Dimensions Center to Center	4.12 in.
Piston Height	4.88 in.
Bead Plate Top Diameter	9 in.
Bead Plate Bottom Diameter	10 in.
Application	Navistar 1670073C-1, Navistar 1686386C-1
Assembled Product Weight (lb)	18
Bellows	1T15M-8
Bottom Bead Plate Hardware Key	2 x Bold or Stud 1/2-13
Design Height (in.)	12.5-13.5
Loading Capacity at 20 psig	1,510 lbsf
Loading Capacity at 60 psig	4,530 lbsf
Loading Capacity at 90 psig	6,795 lbsf
Maximum Diameter	12.7
Maximum Rebound Height (in.)	21.53
Minimum Jounce Height (in.)	5.9
Natural Frequency	Hz
Operating Temperature (Deg C)	57 to -54
Top Bead Plate Hardware Key	Bold or Stud 1/2-13

Product Description

Manufacturer: Spring Pro

Spring Pro Bellows Number: 889371

Goodyear Bellows Number: 566-24-3-038

Goodyear Part Number: 1R12-401

Firestone Bellows Number: 1T15MT-8

Firestone Part Number: W01-358-9371

Replaces: Navistar 1670073C-1, Navistar 1686386C-1 and Navistar 2027911C-1

Cross References: 1R12401, 1S12244, 8521, 1R12-401, 1670043C1, 1686386C1, 1S12-244, 64290, 9 10-17.5 P 521, 910-17.5P521, 91017.5P521, W01-358-9371
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
